Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire

Name: Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
Brand: MingTong
Price: 300 USD

Buy cheap Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire product

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 300-2000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : FTTH Flat Drop Cable

Outdoor FTTH Drop Cable : Single-Mode G657A1/G652D

Number Of Fiber : 1

Construction : Self-supporting With FRP/Steel Messenger

Cable Diameter : (2.0±0.2)X(5.0±0.2)mm

Outer Jacket Materail : LSZH/PVC

Package : Wooden Drum

Highlight : G652D flat drop fiber cable, G657A Flat FTTH Drop Cable, G657A Steel FTTH Drop Cable

Contact Now

Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire

Self Supporting Flat FTTH Drop Cable G652D G657A Steel Fiber Optic Wire

Outdoor 1 2 4 Cores Single Mode G652D G657A Steel Wire Fiber Optic Flat FTTH Drop Cable

The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

Features
1. Suitable for indoor or duct application
2. Easy jacket removal without special tools
3. Self-support structure
4. Excellent crush and impact resistance
5. Flame Retardant LSZH jacket is applied
6. ITU-T G.657 fiber is available
7. Available from 1 to 8-fiber counts

Application
1. Access network, fiber to the home
2. Used end users directly cabing
3. Outdoor cabling and distribute

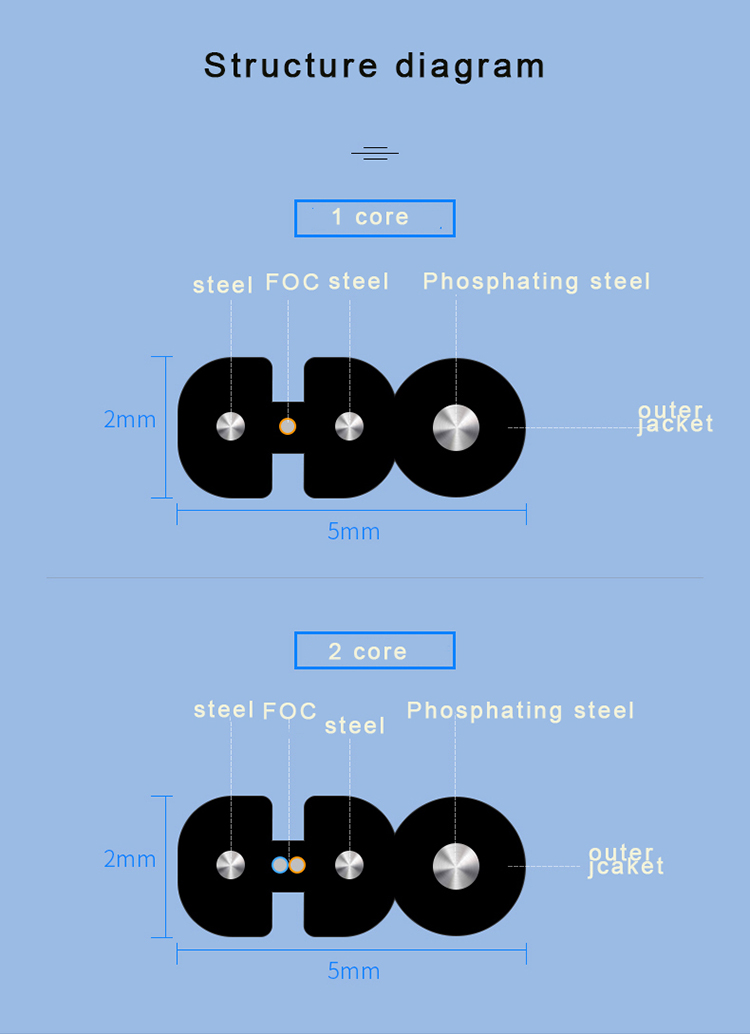

Structure

Structure		Unit	Parameter
Fiber count		Fibers	2
Diameter		mm	5.0*2.0
Weight		Kg/km	Approx.21
Sheath color			Black
Sheath material			LSZH
O.D of steel wire		mm	1.0±0.05mm
Strength member		mm	0.5mm FRP
Tensile strength		N	1500
Crush Resistance		N	2200
Bending Radius	Dynamic		30×Cable Diameter
	Static		15×Cable Diameter
Operating Temperature		℃	-40 --- +70

Test Datasheet

Category	Description		Specifications
			G.657A1
Optical Specifications	Attenuation	@1310-1625nm	≤0.36dB/km
		@1383±3nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius ,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N

Self Supporting FTTH Flat Drop Cable G652D G657A Steel Fiber Optic Wire
